Start with the application branch
Compare engine code, bore diameter, bolt pattern, throttle-plate orientation, connector key, attached lower case and included gasket or harness stay.
Do not force or clean an electronic throttle plate without the correct procedure. A compatible-looking bore does not prove actuator calibration.
Identification checkpoints before price comparison

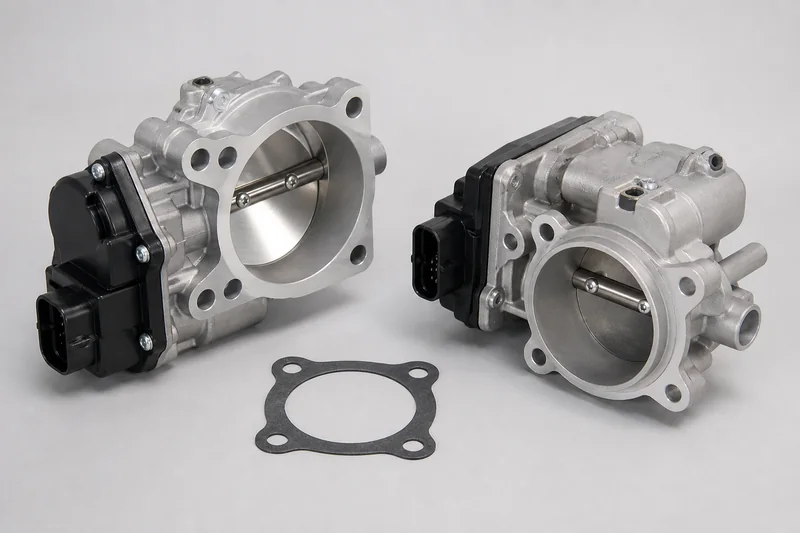

For electronic throttle bodies, record 2.0l or 1.5t engine, verify bore and flange dimensions, and photograph actuator housing and connector on both the installed and removed component.
Scoped OE reference
| Reference | Catalogue scope used for identification |
|---|---|
| 16400-5BA-A01 | Selected 2022 Civic 2.0L LX/Sport sedan and hatchback starting branch. |
| 16400-59B-003 | Selected 2022 Civic 1.5T EX/Si/Touring and higher hatchback starting branch. |
Reference 16400-5BA-A01 is retained only as a electronic throttle bodies identification lead; the submitted vehicle, installed component and any later supersession must remain within its stated catalogue boundary.
Common order boundaries
Build a comparable B2B order line
Separate 2.0L and 1.5T units, then state whether gasket, lower case and mounting hardware are included.
Quote bare throttle body separately from throttle body with gasket, documenting trial and repeat quantity, destination, Incoterm, label requirements and included hardware for that SKU.
Export packing checkpoint
Protect the plate and bore from contamination, cap openings, isolate the connector and prevent flange impact.
Common buyer questions
Which Civic details separate electronic throttle bodies variants?
Compare engine code, bore diameter, bolt pattern, throttle-plate orientation, connector key, attached lower case and included gasket or harness stay. Record 2.0l or 1.5t engine, bore and flange dimensions and actuator housing and connector before comparing candidates.
What should a electronic throttle body photograph show?
Photograph the complete installed location and removed component, then add clear views of actuator housing and connector, mounting points and every connector, port or seal. Use named endpoints and units for any measurement.
How should the listed OE reference be used for Electronic Throttle Bodies?
For electronic throttle bodies, the displayed reference is a narrow catalogue starting point only. Keep its visible vehicle boundary attached and confirm the installed component plus any later supersession before quotation.
How should bare throttle body be prepared for export?
Separate 2.0L and 1.5T units, then state whether gasket, lower case and mounting hardware are included. Protect the plate and bore from contamination, cap openings, isolate the connector and prevent flange impact. State quantity per SKU, destination, packing and buyer-label requirements separately.
